High-Performance Sensor and Image Processor
The Explore 100 boasts a Sony 1/1.8-inch 9MP CMOS sensor and a state-of-the-art image processor, to deliver stunning UHD images that capture realistic colors and maintain rapid focus.
DC Brushless PTZ Motor System with Preset Sync
The Explore 100 features a precision DC brushless PTZ motor system with synchronized Pan, Tilt, and Zoom control during preset recall, ensuring smooth movement between preset positions.
With stable torque across the full speed range, the system delivers especially smooth and precise low-speed operation, reducing jitter and abrupt transitions while eliminating robotic motion commonly found in conventional PTZ cameras for natural broadcast-grade performance.
Native AI-Based Auto-Tracking & Auto-framing
The Explore 100 incorporates native AI-based auto-tracking and auto-framing technology, this intelligent feature automatically follows subjects, enhancing ease of use and ensuring that important moments are captured flawlessly.

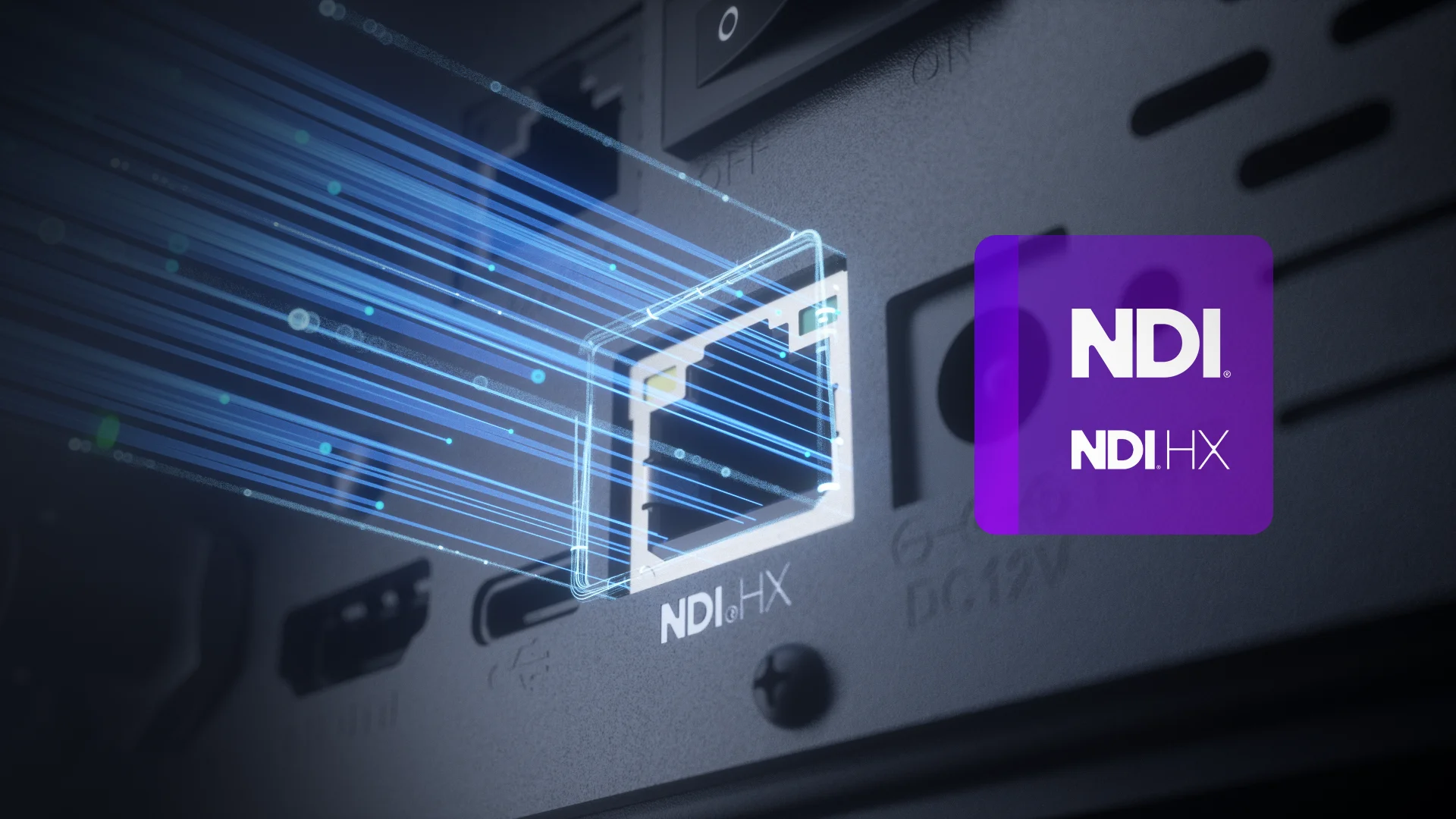

NDI® and NDI® HX Support
The Explore 100 PTZ camera supports both NDI® and NDI®|HX, offering flexible, high-efficiency video streaming options. NDI® provides high-quality, low-latency video over IP networks, while NDI®|HX optimizes bandwidth usage for smoother performance in network-constrained environments. This dual support ensures robust and adaptable connectivity for diverse broadcasting needs.

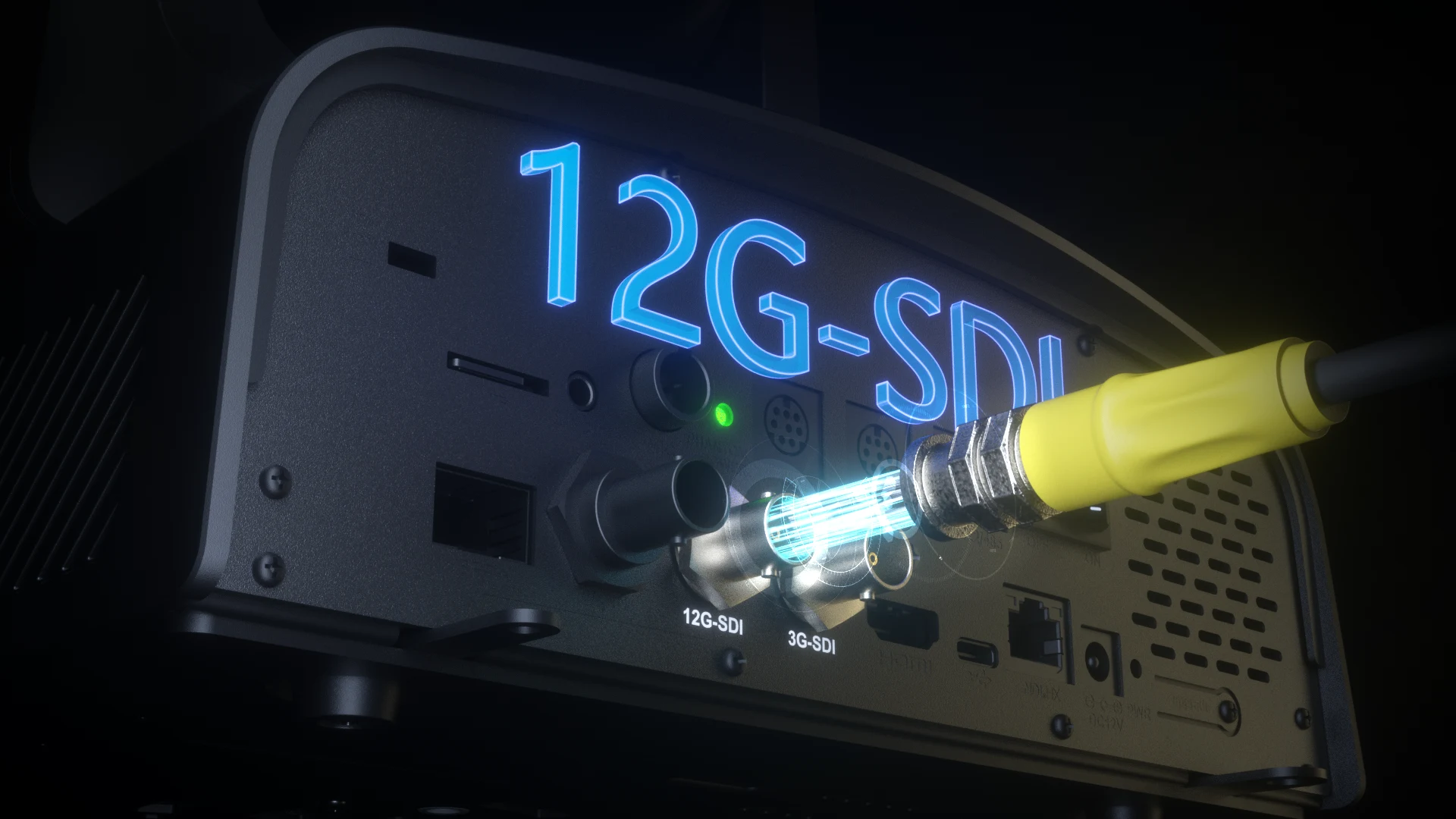

High-Speed 12G-SDI for Professional 4K Video
The Explore 100 PTZ camera features 12G-SDI, a high-speed video interface capable of transmitting 4K video at 60 frames per second over a single cable. This ensures uncompressed, high-quality video output with minimal latency, making it ideal for professional broadcasting and live event production. The 12G-SDI connection also supports longer cable runs without signal degradation, providing reliable performance in demanding environments.
Genlock Ensures Seamless Synchronization for Multi-Camera Productions
In multi-camera productions, Genlock (generator lock) ensures seamless switching and compositing of video sources. This synchronization technique provides a reference signal, typically from a dedicated generator or a master camera, guaranteeing all connected devices capture frames at precisely the same time. This prevents tearing and inconsistencies during video production and editing. The Explore 100 features Genlock for superior synchronization, allowing it to function as the main camera and ensure precise video synchronization with sub-cameras in broadcasting and live streaming setups.
FreeD Integration Unlocks Immersive Virtual Productions
FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Explore 100 seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Explore 100’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.

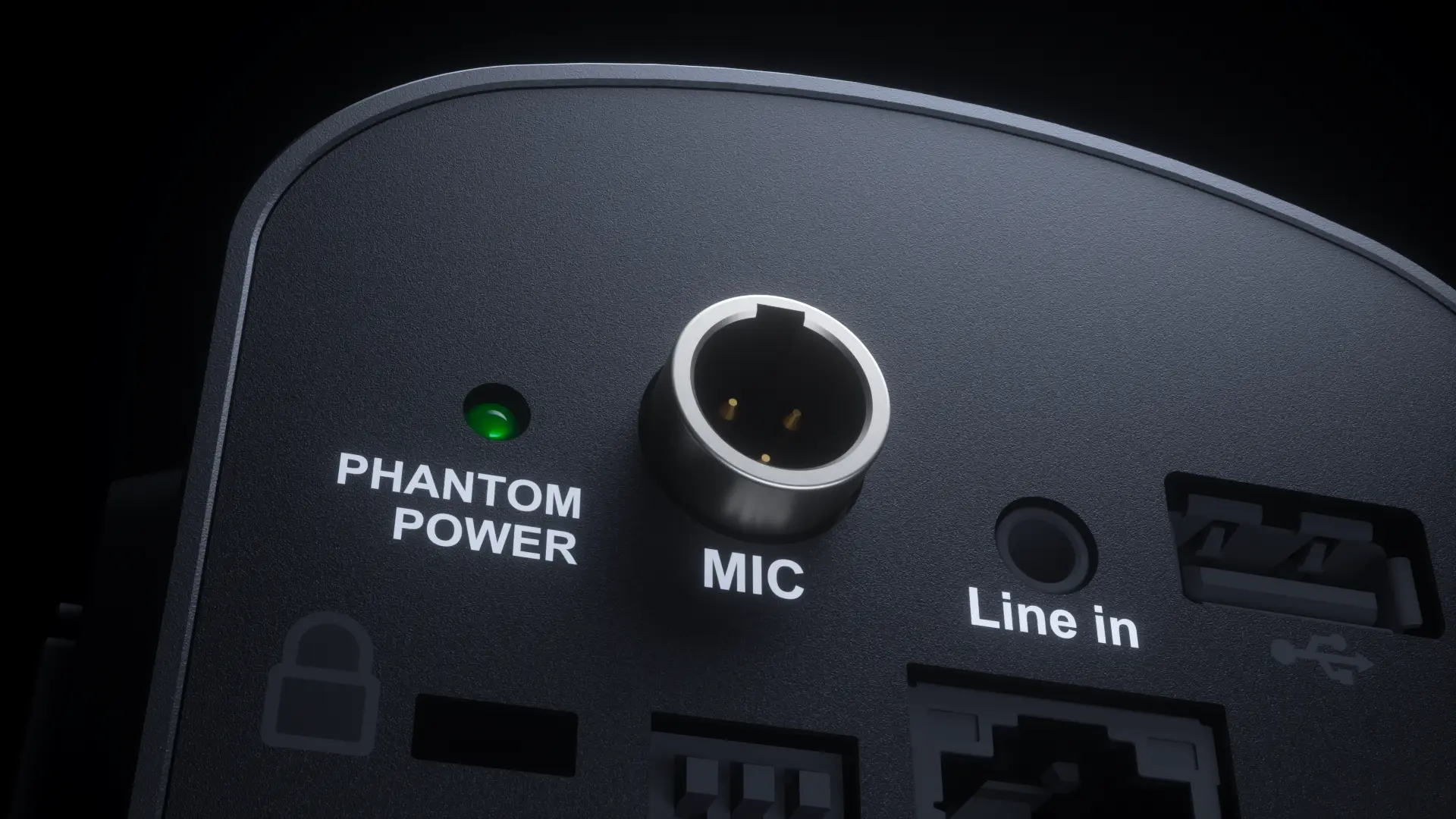

Robust Audio Capabilities
The Explore 100 features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.
Versatile Output Options
The Explore 100 offers diverse output options, ensuring 4K60p output through NDI®, NDI®HX, 12G-SDI, HDMI, and SFP+. It provides great flexibility and compatibility to Telycam users. Note that USB and NDI cannot output simultaneously.

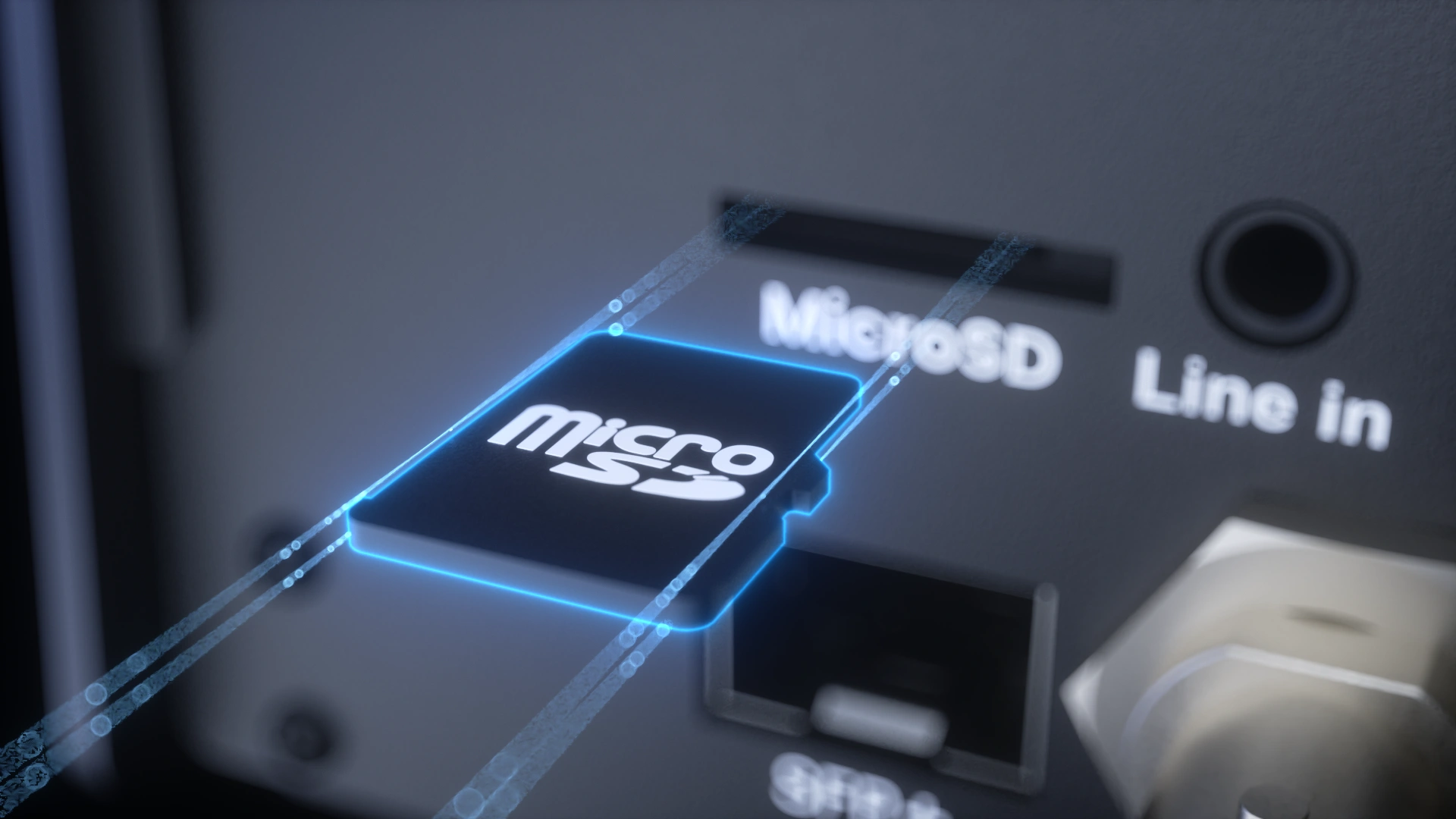

Local Recording for Backup and Cloud Production
Explore 100 empowers you with in-camera recording via a microSD card slot. Simply insert a Micro SD Card for local recording, providing instant backup during network issues, quick access for event review, and readily available files for upload to your preferred cloud platform. This versatile recording solution ensures peace of mind and streamlines your cloud production process.

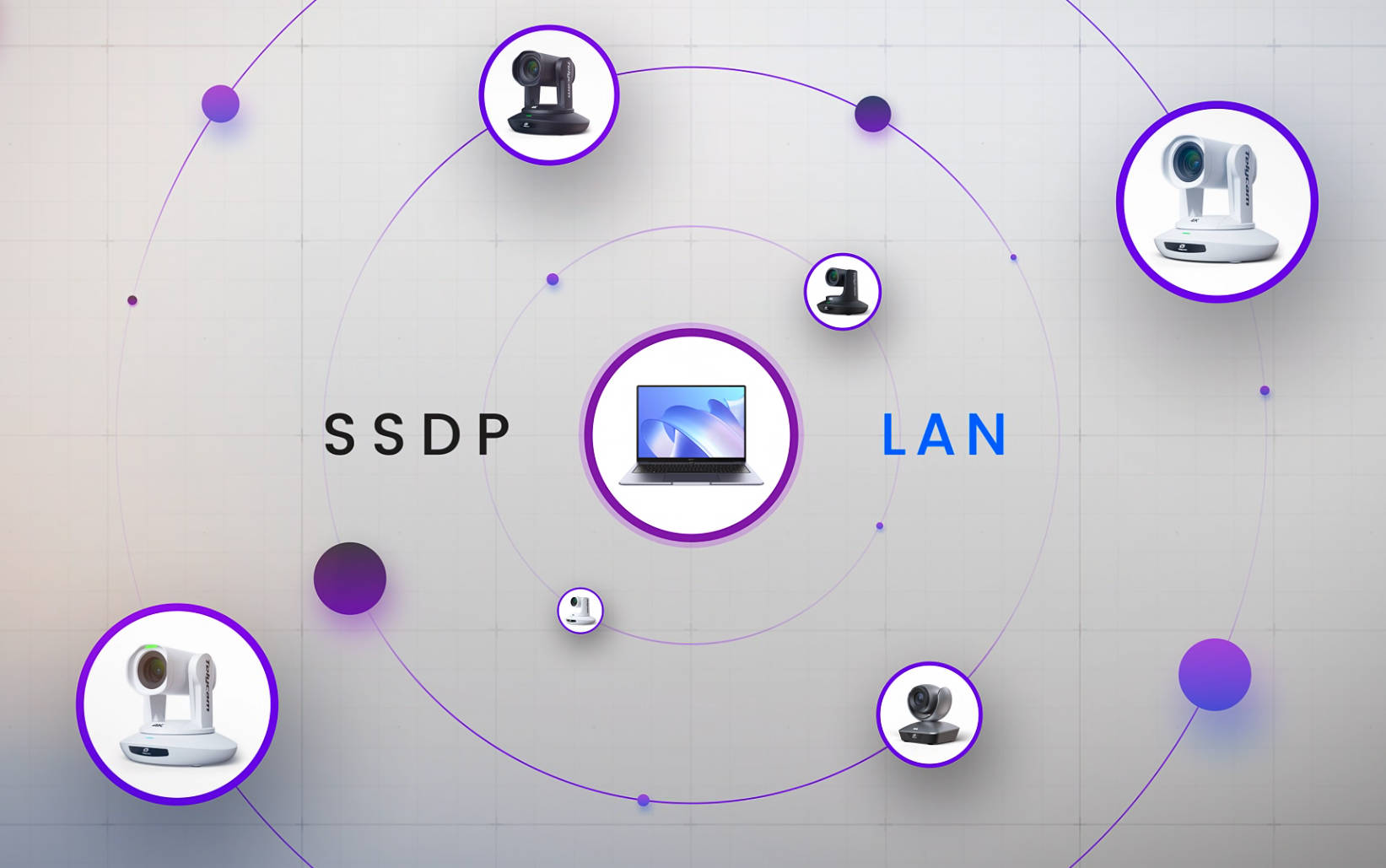

Seamless Camera Setup with SSDP
Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.

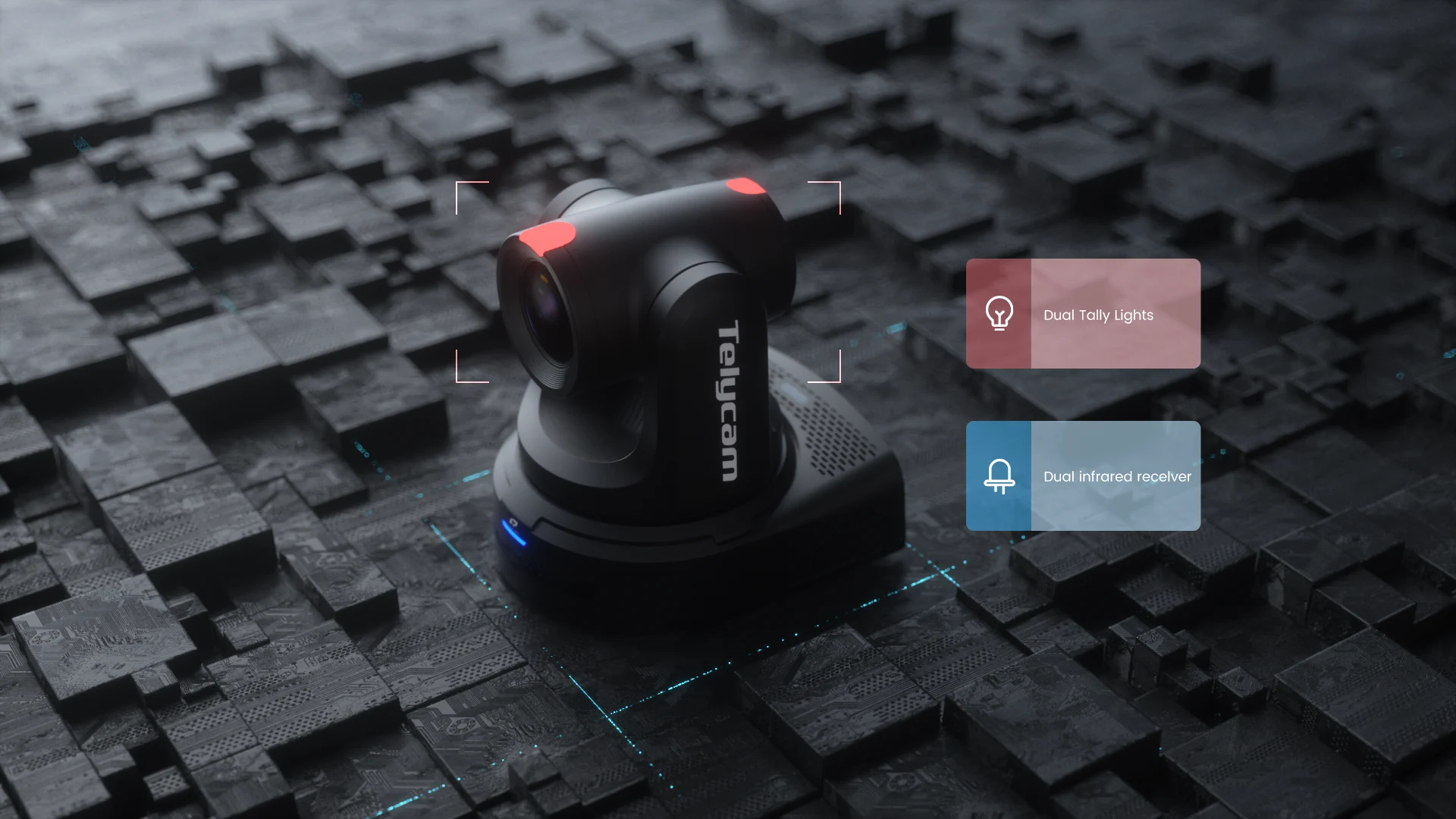

Dual Tally Lights for Effortless Production Cues
Explore 100 features built-in dual tally lights, visible on both the front and back of the camera. These lights work seamlessly with NDI, Visca Serial, and Visca over IP protocols. With a simple glance, on-screen talent and crew can identify the currently live camera (“Program”) and the one lined up for the next transition (“Preview”). This intuitive system ensures clear communication, guaranteeing smooth video production.
Specifications
Camera
• Part NO. TLC-900-IP-30-4K(NDI)-AB-G2
• Sensor: 1/1.8-inch, 9MP UHD CMOS sensor
• 30X optical zoom
• Lens: f=6.91~214.64mm, F1.35~F4.6
• Horizontal View Angle: 63°(Wide)~2.1°(Tele)
• Vertical Viewing Angle: 34.14°~1.12°
• Diagonal Viewing Angle: 67.08°~2.27
• Minimum Working Distance: Wide: 30cm; Tele: 150cm
• S/N Ratio: ≥50dB
IP Streaming
• Video Encoding: H.264/H.265
• Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Video Bitrate:
NDI|HX3: 3Mbps ~ 120Mbps;
NDI® high bandwidth: 90Mbps ~ 250Mbps
• Network Port Speed: 1000M
• Protocol: NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
Image Parameters
• Noise Reduction: 2D&3D
• Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.35)
• White Balance: Auto/Manual/ATW/Push
/Indoor/Outdoor/Color Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip/Mirroring: Supported
• Focus/Iris/Electronic-shutter : Auto/Manual
• Gamma: Supported
• Backlight Compensation: Supported
Video Format
NDI® / NDI®HX3:
Main Stream: 3840*2160P15~60; 1920*1080P15~60;
1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
SFP+:
3840*2160 P60/50/30/25/59.94/29.97/
24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30
/25/59.94/29.97
12G-SDI:
3840*2160P60/50/30/25
/59.94/29.97/
24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/
24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25
/59.94/29.97
3G-SDI(Crop Only):
1920*1080P60/59.94/50/30
/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30
/29.97/25
HDMI2.0:
3840*2160 P60/50/30/25/59.94/29.97
/24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/
25/59.94/29.97
USB Type-C:
NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60;
1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60;
1024*576P60; 800*448P60
Pan/Tilt Movement
• Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
• Pan Rotation Angle: -170°~+170°
• Tilt Rotation Angle: -90°~+90°
• Pan Rotation Speed: 0.1°~80°/s
• Tilt Rotation Speed: 0.1°~60°/s

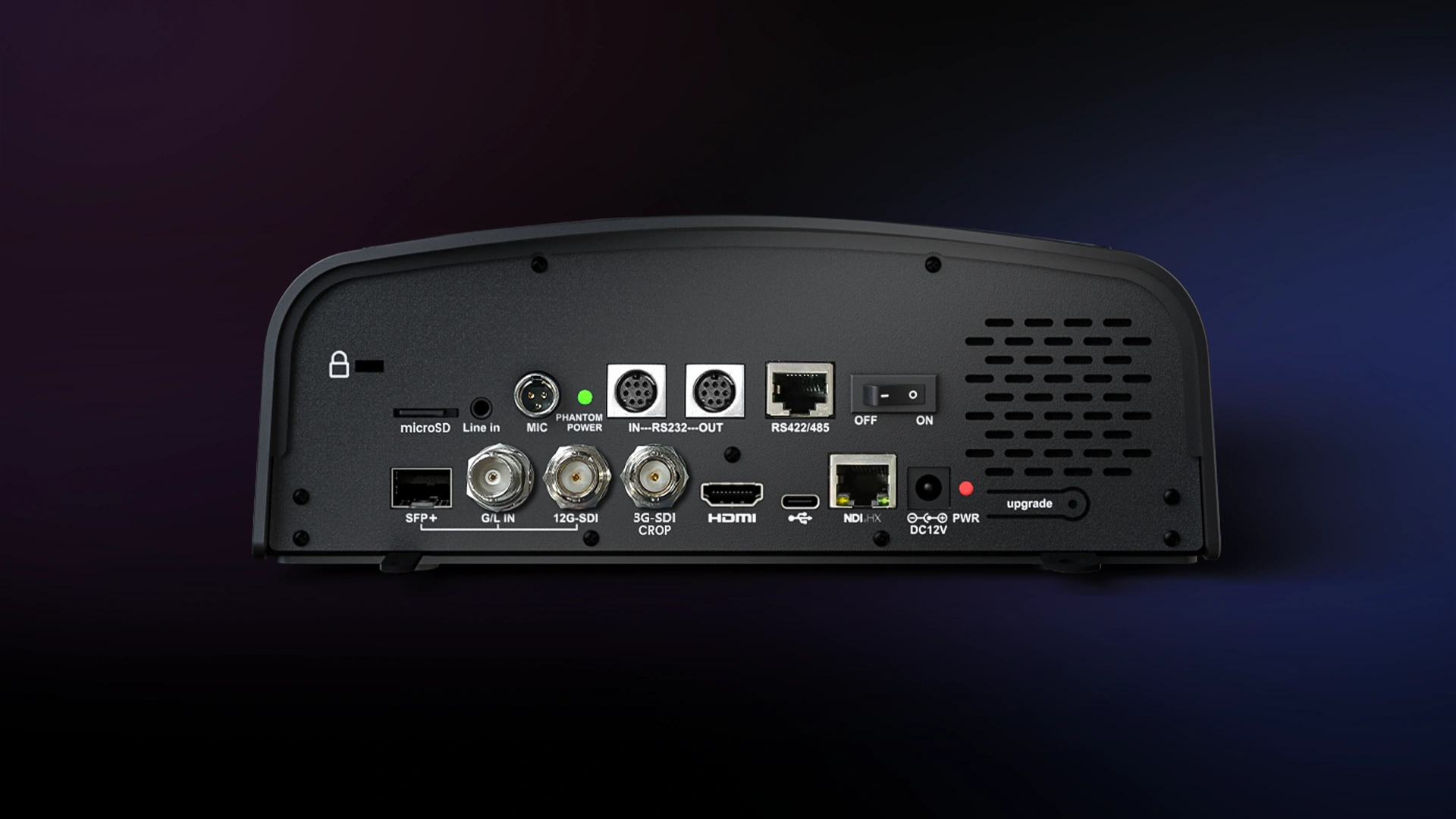

I/O Interface
• Control Port: RS232, RS485, RS422, RJ45, USB, NDI®HX
• Video Port: NDI®, NDI®HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
• Audio Port: Mini XLR(with phantom power), stereo 3.5mm line in
• Tally: Supported
• POE++: Supported
• Daisy Chain: Supported
General
• Input Voltage: DC12V, POE++(IEEE802.3bt)
• Operating Temperature: -10℃~50℃
• Operating Humidity: ≤80%
• Dimension(L×W×H): 232.5mm×264mm×269mm
• Net Weight: 4.6kg(4.2LBS)
• Color: Black/White
